Air Container Info

DEMI	IATA ULD code: AYY contoured container on half pallet base. Rate class: Type 7 Description: Half-width main deck container with top contour Suitable for: 727F, 737F, 757F main deck, 747F, 767F, 777F, DC-10F, MD-11F main deck Maximum gross weight: 3,016 kg (6,649 lb) Tare weight: 80 kg (176 lb) AS1825 volume: 5.8 m³
HMA STALL	IATA ULD code: HMA horse box on P6P pallet base Rate class: Type 2 Description: P6P base with IATA-specified horse box stalls attached. Available with canvas top or solid roof. Some further modified versions available with position for escort. Suitable for: Main deck 747F, 767F, 777F, DC-10F, MD-11F Maximum gross weight: 3,500 kg (7,716 lb) Tare weight: 1,310 kg (2,888 lb) AS1825 volume: 18.4 m³
LD-1	IATA ULD code: AKC contoured container Prefixes: AVC, AVD, AVK, AVJ, and forkable AVY Rate class: Type 8 Description: Half-width lower hold container with one angled side. Door is either canvas or solid. Load ability: 747, 767, 777, 787, MD-11 lower hold Door opening: 147 x 155 cm (58 x 61 in) Maximum gross weight: 1,588 kg (3,501 lb) Tare weight: 70 to 170 kg (155 to 375 lb) AS1825 volume: 5.0 m³(175 ft³)
LD-11	IATA ULD code: ALP rectangular container Prefixes: ALD, AW2, AWB, AWD, AWZ, DLP, DWB, and MWB. Refrigerated version: RWB, RWD, and RWZ. Rate class: Type 6 Description: Full-width lower hold container. Door is canvas. Center post swings clear for loading. Refrigerated version has solid door. Suitable for: 747, 777, 787, DC-10, MD-11 lower hold Door opening: 120 x 61-in (305 x 155-cm) Maximum gross weight: 3,176 kg (7,002 lb) Tare weight: 185 kg (408 lb) AS1825 volume: 7.4 m³ (262 ft³) Boeing volume: 7.2 m³ (256 ft³)
LD-2	IATA ULD code: DPE contoured container Prefixes: APA, DPA, and forkable DPN Rate class: Type 8D Description: Half-width lower hold container with one angled side. Door is either canvas or solid. Suitable for: 747, 767, 777, 787 lower hold Door opening: 44 x 60-in (112 x 152-cm) Maximum gross weight: 1,225 kg (2,700 lb) Tare weight: 92 kg (203 lb) AS1825 volume: 3.5 m³ (124 ft³) Boeing volume: 3.5 m³ (124 ft³)
LD-26	IATA ULD code: AAF contoured container on P1P base Rate class: Type 5 Description: Full-width lower hold container angled at both ends. Door is canvas with built-in net door straps. Suitable for: 747, 777, 787, DC-10, MD-11 lower hold Door opening: 120 x 60-in (305 x 152-cm) Maximum gross weight: 6,033 kg (13,300 lb) Tare weight: 250 kg (551 lb) AS1825 volume: 13.3 m³
LD-29	IATA ULD code: AAU contoured container on P1P base Rate class: Type 5 Description: Full-width lower hold container angled at both ends. Door is canvas with built-in net door straps. Suitable for: 747 lower hold Door opening: 118 x 60-in (300 x 152-cm) Maximum gross weight: 6,033 kg (13,300 lb) Tare weight: 265 kg (584 lb) AS1825 volume: 14.4 m³ (510 ft³)
LD-29 REEFER	IATA ULD code: RAU contoured cool container on P1P base. Rate class: Type 5 Description: Full-width lower hold container angled at both ends. Refrigerated version of AAU has solid door. Suitable for: 747 lower hold Door opening: 118 x 60-in (300 x 152-cm) Maximum gross weight: 6,033 kg (13,300 lb) Tare weight: 450 kg (992 lb) Internal volume: 11.1 m³ (392 ft³)
LD-3	IATA ULD code: AKE contoured container Prefixes: AKE, AVA, AVB, AVC, AVK, DVA, DVE, DVP, XKS, XKG, and forkable AKN, AVN, DKN, DVN, and XKN Rate class: Type 8 Description: Half-width lower deck container with one angled side. Door is either canvas or solid. Loadability: A300, A310, A330, A340, 747, 767, 777, DC-10, MD-11, and L-1011 Door opening: 58 x 61 in (147 x 155 cm) Maximum gross weight: 3,500 lb (1,588 cm) Tare weight: 181 lb (82 kg) AS1825 volume: 159 ft³ (4.5 m³)
LD-3 REEFER	IATA ULD code: RKN contoured cool container Prefixes: RVN Rate class: Type 8 Description: Half-width lower hold insulated container with one angled end. Door is solid. Most examples are forkable. Suitable for: 747, 767, 777, 787, DC-10, MD-11 lower hold Door opening: 54 x 55-in Maximum gross weight: 1,588 cm (3,500 lb) Tare weight: 210 kg (463 lb) AS1825 volume: 4.5 m³ (159 ft³) plus internal volume (as is)

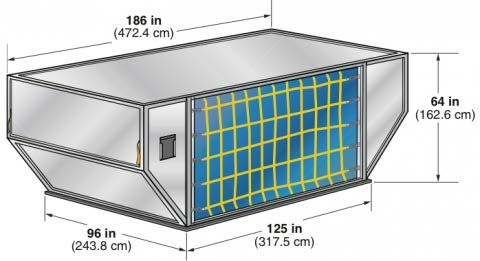

LD-39	IATA ULD code: AMU contoured container on P6P base Rate class: Type 2BG Description: Full-width lower hold container angled at both ends. Door is canvas with built-in net door straps. Suitable for: 747 lower hold Door opening: 120 x 60-in (305 x 152-cm) Maximum gross weight: 5,035 kg (11,100 lb) Tare weight: 290 kg (639 lb) AS1825 volume: 15.9 m³ (560 ft³)

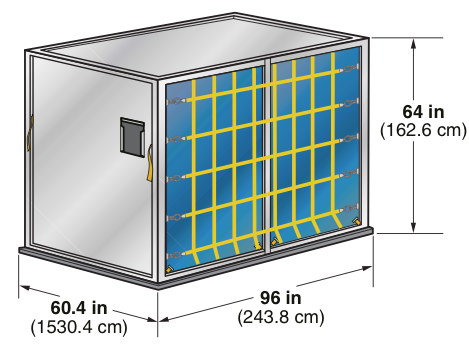

LD-4	IATA ULD code: ALP rectangular container Prefixes: ALD, AWD, AWZ, DLP, and forkable ALB, ALC, AWB, and AWC Rate class: Type 8 Description: Full-width lower hold container. Door is canvas with built-in door straps. Suitable for: 767, 777, 787 lower hold Door opening: 92 x 61-in (234 x 155-cm) Maximum gross weight: 2,449 kg (5,399 lb) Tare weight: 120 kg (264 lb) AS1825 volume: 5.7 m³ (200 ft³) Boeing volume: 5.5 m³ (195 ft³)
LD-6	IATA ULD code: ALF contoured container Prefixes: AWA, AWF, and forkable AWC Rate class: Type 6W Description: Full-width lower hold container with angled ends. Door is canvas with built-in door straps. Suitable for: 747, 777, 787, DC-10, MD-11 lower hold Door opening: 120 x 60-in (305 x 152-cm) Maximum gross weight: 3,175 kg (7,000 lb) Tare weight: 230 kg (507 lb) AS1825 volume: 9.1 m³ (322 ft³) Boeing volume: 8.9 m³ (316 ft³)
LD-7	IATA ULD code: P1P flat pallet with net Prefixes: PAA, PAG, PAJ, PAP, PAX, P1A, P1C, P1D, and P1G Rate class: Type 5 Description: Universal general-purpose flat pallet for lower holds and main decks. Suitable for: o Widebody: All aircraft lower holds and main decks o Standard-body: 707F, 727F, 737F, 757F, DC8F, DC9F main decks Maximum gross weight: 4,626 kg (10,198 lb) Tare weight: 105 kg (231 lb) AS1825 volume: 10.5 m³ (370 ft³) Boeing volume: 10.7 m³ (379 ft³)
LD-7 WITH ANGLED WINGS	IATA ULD code: XAW P1P pallet with fixed-angle wings and net Rate class: Type 5 Description: P1P base with fixed wings for overhang. Suitable for: 747, 777, 787, DC-10, MD-11 lower holds Maximum gross weight: 5,000 kg (11,023 lb) Tare weight: 170 kg (375 lb) AS1825 volume: 14.0 m³ (495 ft³)
LD-7 WITH FOLDING WINGS	IATA ULD code: PAD P1P pallet with folding wings and net Prefixes: PAX and P1X Rate class: Type 5 Description: P1P base with folding wings for overhang. Suitable for: 747, 777, 787, DC-10, MD-11 lower holds Maximum gross weight: 5,000 kg (11,023 lb) Tare weight: 152 kg (335 lb) AS1825 volume: 14.0 m³ (495 ft³)
LD-8	IATA ULD code: DQF Prefixes: ALE, ALN, DLE, DLF, DQP, and MQP Rate class: Type 6A Description: Full-width lower hold container angled at both ends. Door is canvas with built-in door straps. Suitable for: 767, 787 lower hold Door opening: 92 x 62-in (234 x 157-cm) Maximum gross weight: 2,450 kg (5,401 lb) Tare weight: 127 kg (280 lb) AS1825 volume: 7.1 m³ (252 ft³) Boeing volume: 6.9 m³ (245 ft³)
LD-9	IATA ULD code: AAP enclosed pallet on P1P base Rate class: Type 5 Description: General-purpose enclosed container fitted to P1P base. Door is canvas with built-in net door straps, or solid. Suitable for: 747, 767, 777, 787, DC-10, MD-11 lower hold Door opening: 118 x 58 in (300 x 147-cm) Maximum gross weight: Lower hold, 4,624 kg (10,194 lb); main deck, 6,000 kg (13,227 lb) Tare weight: Canvas door, 215 kg (473 lb); solid door, 270 kg (595 lb) 3 3 AS1825 volume: 10.8 m (381 ft ) Boeing volume: 10.8 m³ (381 ft³)
LD-9 REEFER	IATA ULD code: RAP cool container on P1P base Rate class: Type 5 Description: Insulated container with solid door. Suitable for: 747, 767, 777, 787, DC-10, MD-11 lower hold Door opening: 85 x 58-in (216 x 147-cm) Maximum gross weight: Lower hold, 4,626 kg (10,198 lb); main deck, 6,000 kg (13,227 lb) Tare weight: 400 kg (882 lb) Internal volume: 9.6 m³ (339 ft³)
M-1	IATA ULD code: AMA rectangular container on P6P base Prefixes: AMF, AMG, AMK, AMP, AQA, AQD, and AQ6 Rate class: Type 2 Description: Main-deck container. Door is canvas with built-in net door straps. Suitable for: 747F, 747 Combi, 777F center loading only Maximum gross weight: 6,804 cm (15,000 lb) Tare weight: 350 kg (772 lb) AS1825 volume: 17.6 m³ (623 ft³)
M1-H	IATA ULD code: AMD contoured Rate class: Type 2H Description: Main-deck upper contoured container. Door is canvas with built-in net door straps. Suitable for: 747F, 747 Combi777F center loading only Maximum gross weight: 6,800 kg (14,491 lb) Tare weight: 370 kg (816 lb) AS1825 volume: 21.2 m³ (750 ft³)
M2	IATA ULD code: AGA 20-ft box container Prefixes: ASE Rate class: Type 1 Description: Main-deck container. Door is solid. Suitable for: 747F, 747 Combi (243.8 cm) 777F center loading only 238.5 in Maximum gross weight: 11,340 kg (25,000 lb) Tare weight: 1,000 kg (2,204 lb) AS1825 volume: 33.7 m³ (1,190 ft³)
M6	IATA ULD code: PGA 20-ft flat pallet with net Prefixes: PGA, PGE, PGF, PSA, PSG, P7E, P7F, and P7G Rate class: Type 1 Description: Main-deck pallet squared off to 244 cm (96 in) high. Suitable for: 747F, 747 Combi, 777F Maximum gross weight: 11,340 kg (25,000 lb) (605.8 cm) Tare weight: 500 kg (1,102 lb) AS1825 volume: 33.7 m³ (1,190 ft³)
M6 (118”)	IATA ULD code: PGA 10-ft high, 20-ft flat pallet with net Prefixes: PGA, PGE, PGF, PSA, PSG, P7A, P7E, P7F, and P7G Rate class: Type 1 Description: Main-deck pallet squared off to 299.7 cm (118 in) high. Suitable for: 747 Combi, 777F 238.5 in 747F through side cargo door only Maximum gross weight: 11,340 kg (25,000 lb) Tare weight: 500 kg (1,102 lb) AS1825 volume: 39.6 m³ (1,400 ft³)
M6 TWIN CAR RACK	IATA ULD code: PRA 16-ft flat pallet with twin car racks as VRA Prefixes: PMA, P4A, P4M, and PZA Rate class: Type 1P Description: Main-deck pallet with special moulding for car rack attachments. The support racks are available in pairs as IATA ULD code VRA. Suitable for: 747F, 747 Combi, 777F (center loading only) Maximum gross weight: 8,900 kg (19,621 lb), vehicle for upper rack must not exceed 1,800 kg (3,968 lb) Tare weight: 400 kg (882 lb) Car supports weight: 130 kg (286 lb) per pair Note: The same system is available for longer vehicles on 20-ft pallet. The only increase in weight is the pallet tare weight: 500 kg (1,102 lb).
MDP	IATA ULD code: PRA 16-ft pallet with net Prefixes: PMA, P4A, P4M, and PZA Rate class: Type 1P Description: Main-deck pallet with net Suitable for: 747F, 747 Combi, 777F Maximum gross weight: 11,300 kg (24,911 lb) Tare weight: 410 kg (904 lb) AS1825 volume: 27.6 m³ (974 ft³)
PLA HALF PALLET	IATA ULD code: PLA half pallet with net Prefixes: PLB, FLA, P9A, P9B, P9P, P9R, and P9S Rate class: Type 6 Description: Half pallet is contoured for lower hold and main deck. Suitable for: 747, 777, 787 lower hold; 707F, 727F, 737F main deck with contoured load Maximum gross weight: 3,175 kg (6,999 lb) Tare weight: 91 kg (200 lb) AS1825 volume: 7.1 m³ (250 ft³)
PMC/P6P PALLET	IATA ULD code: P6P 10-ft flat pallet with net Rate class: Type 2BG Description: Universal general-purpose flat pallet for lower holds and main decks. Suitable for: 747, 767, 777, 787, DC-10, MD-11 Tare weight: 120 kg (265 lb) AS1825 volume: H 162.6 cm H 243.8 cm H 299.7 cm H 162.2 cm H 243.8 cm H 299.7 cm 3 3 3 Boeing volume: (64 in), 11.5 m (407 ft ) (96 in), 17.0 m (600 ft³) (118 in), 21.2 m³ (750 ft³) (64 in), 11.7 m³ (415 ft³) (96 in), 17.0 m³ (600 ft³) (118 in), 21.2 m³ (750 ft³)
PNA HALF PALLET	IATA ULD code: PNA 767 half pallet with net Prefixes: PQP, FQF, and PPC Rate class: Type 8 Description: Half pallet squared off for 767 lower hold Suitable for: 767, 787 lower hold Maximum gross weight: 2,449 kg (5,399 lb) Tare weight: 83 kg (183 lb) AS1825 volume: 5.5 m³ (194 ft³)
TYPE A PEN	IATA ULD code: KMA sheep and goat pens on P1P base with net Rate class: Type 3 Description: Triple-deck sheep and goat pens Suitable for: Main deck 747F, 767F, 777F, DC-10F, MD-11F Tare weight: Triple deck, 610 kg (1,344 lb); AS1825 volume: 15.9 m³ (560 ft³)
